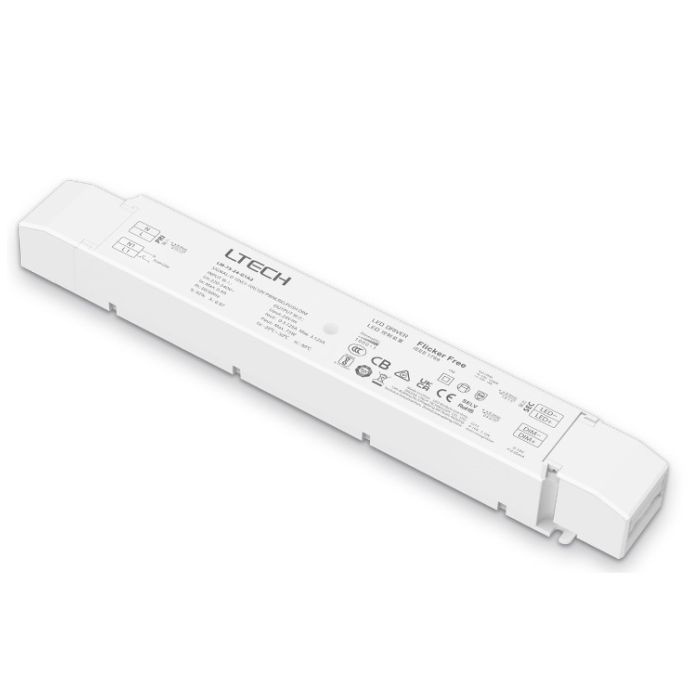

LM-75-12-G1A2 LM-75-24-G1A2 LM-100-24-G1A2 Constant Voltage 0/1-10V LED Dimming Ltech Driver
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price
Dimming interface: 0-10V(1-10V/10V PWM/RX), Push DIM
Built-in SCM, dimming curve and smoothing time of power on can be customized.
Dimming range from 0-100%, LED start at 0.1% possible.
Automatic recognition of 0-10V, 1-10V input signal.
0~100% flicker-free, achieve the level of exemption assessment.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor I/II/III type lamps application.

LM-75-12-G1A2
Rubycon capacitor
Dimming Interface:    0-10V(1-10V/10V PWM/RX), Push DIM
Input Voltage:    220-240Vac
Power Factor:     PF>0.97/230Vac, at full load
Efficiency:    91%
Fluctuation Level:    High frequency exemption level.
Output Voltage:    12Vdc
Output Current:    Max. 6.25A
Output Power:    0~75W
Dimming Range:    0~100%, dimming depth: Max. 0.1%
Certification:    CCC,BIS,TUV,CE,RCM,CB,UKCA,ROHS
Warranty:    5 years

LM-75-24-G1A2
Rubycon capacitor
Dimming Interface:    0-10V(1-10V/10V PWM/RX), Push DIM
Input Voltage:    220-240Vac
Power Factor:     PF>0.97/230Vac, at full load
Efficiency:    92%
Fluctuation Level:    High frequency exemption level.
Output Voltage:    24Vdc
Output Current:    Max. 3.125A
Output Power:    0~75W
Dimming Range:    0~100%, dimming depth: Max. 0.1%
Certification:    CCC,BIS,TUV,CE,RCM,CB,UKCA,ROHS
Warranty:    5 years

LM-100-24-G1A2
Rubycon capacitor
Dimming Interface:    0-10V(1-10V/10V PWM/RX), Push DIM
Input Voltage:    220-240Vac
Power Factor:     PF>0.98/230Vac, at full load
Efficiency:    93%
Fluctuation Level:    High frequency exemption level.
Output Voltage:    24Vdc
Output Current:    Max. 4.17A
Output Power:    0~100W
Dimming Range:    0~100%, dimming depth: Max. 0.1%
Certification:    CCC,TUV,CE,RCM,CB,UKCA,ROHS
Warranty:    5 years
Package Included:
1 Piece of LM-75-12-G1A2/LM-75-24-G1A2/LM-100-24-G1A2 Constant Voltage 0/1-10V LED Dimming Ltech Driver
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
