Ltech LM-36-24-G1T2 LM-36-12-G1T2 36W 24VDC CV Triac LED Driver
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price
Small size and light weight. Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings.
The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
With soft-on and fade in function, visual more comfortable. Dimming range: 0~100%, dimming down to 0.1%.
0-100% flicker-free, High frequency exemption level.
Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM. The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the lifetime the driver.
Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.
Suitable for internal lights application for I/II/III. Up to 50000-hour life time.
5 year warranty (Rubycon capacitor).

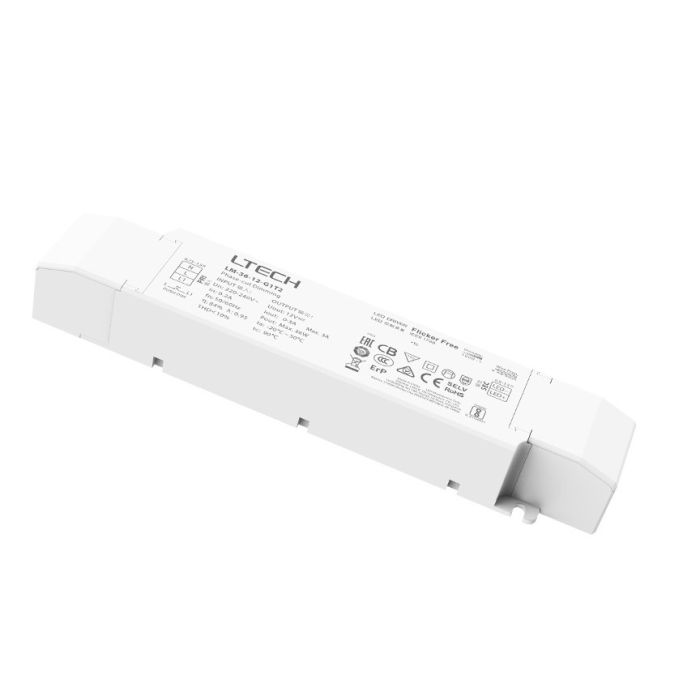

LM-36-12-G1T2
Rubycon capacitor
Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
Input Voltage: 200-240Vdc
Power Factor: PF>0.95/230Vac , at full load
Efficiency: 84%
Fluctuation Level: High frequency exemption level.
Output Voltage: 12Vdc
Output Current: Max. 3A
Output Power: 0~36W
Dimming Range: 0~100%, dimming down to 0.1%
Certification: CCC,BIS,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS,ERP
Warranty: 5 years
LM-36-24-G1T2
Rubycon capacitor
Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
Input Voltage: 200-240Vdc
Power Factor: PF>0.95/230Vac , at full load
Efficiency: 85%
Fluctuation Level: High frequency exemption level.
Output Voltage: 24Vdc
Output Current: Max. 1.5A
Output Power: 0~36W
Dimming Range: 0~100%, down to 0.1%
Certification: CCC,BIS,TUV,CE,KC,RCM,CB,EAC,UKCA,ROHS,ERP
Warranty: 5 years
Package Included:
1 Piece of Ltech LM-36-24-G1T2/LM-36-12-G1T2 36W 24VDC CV Triac LED Driver
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
